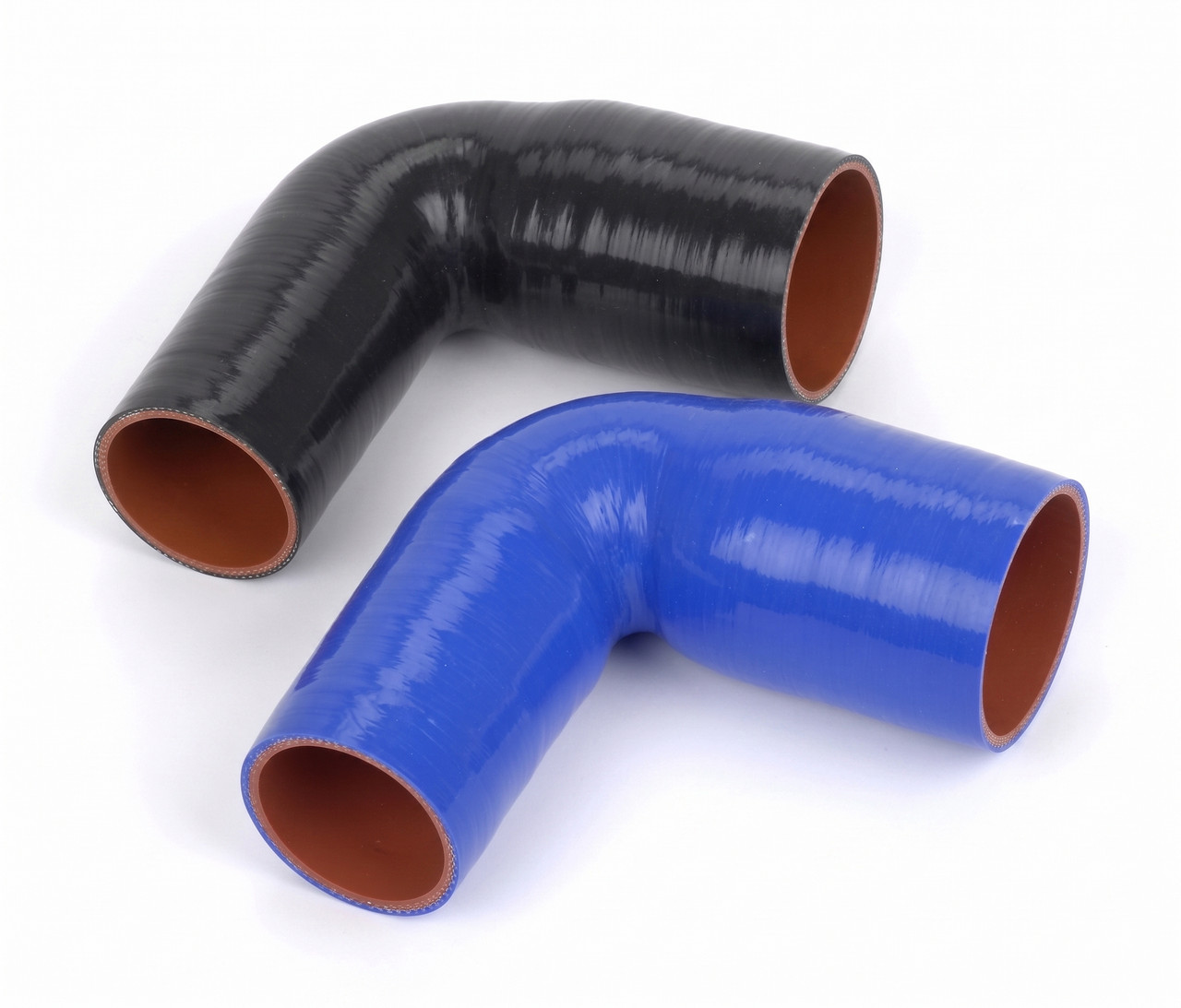

3.00/4.00" ID Reducing 90 Degree Elbow, 6"Legs

3.00" / 4.00" ID Reducing 90° Silicone Elbow Hose (6" Legs)

Engineered for high-stress industrial, marine, and automotive environments, the 3.00" to 4.00" ID Reducing 90-Degree Silicone Elbow Hose with 6-inch legs from Flex Technologies delivers superior flexibility, thermal protection, and pressure resistance. Manufactured to exceed strict ISO 9001:2015 and IATF 16949:2016 quality standards, this heavy-duty reducer elbow provides an airtight, long-lasting connection for critical intake and exhaust systems.

Key Features & Benefits

• Electrochemical Degradation Resistance: Specifically formulated to prevent electrochemical breakdown, extending hose life under intense working conditions.
• UV & Ozone Resistant: Maintains structural integrity without weathering, cracking, or weakening when exposed to ambient sunlight and ozone.
• Extreme Thermal Resistance: Delivers high tolerance to extreme hot and cold temperatures, keeping your system operating reliably.

Technical Specifications

• Inner Diameter (ID): 3.00" ID to 4.00" ID Reducer
• Leg Length: 6 Inches
• Construction: 5-Ply Silicone with Polyester Reinforcement
• Hardness Rating: 70 Durometer
• Wall Thickness: Nominal 0.200" (.170" – .220" range)
• Color Options: Available in Blue, Red, or Black
• Design: Ultra-clean, logo-free exterior (custom company logo placement available upon request)
• Quality Certifications: ISO 9001:2015 and IATF 16949:2016 compliant

Common Applications

• High-performance automotive air intakes and intercooler piping
• Marine exhaust and engine cooling systems
• Aerospace induction and vacuum connections
• Heavy equipment and industrial fluid transfer lines

Download the Technical Spec Sheet (PDF)
